4 Gangs Remote Control Switch Panel For LED Offroad Car Lights
4 Gangs Remote Control Switch Panel For LED Offroad Car Lights

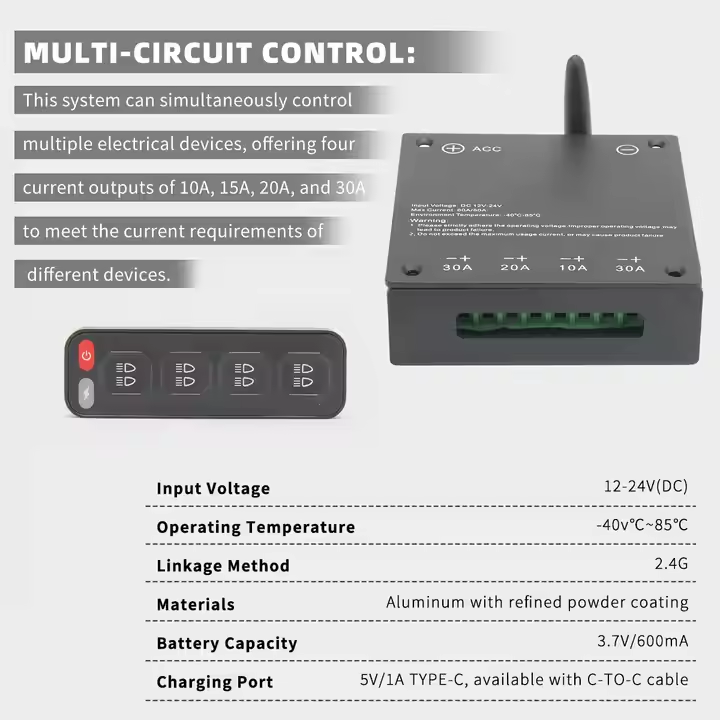

1. Indicator light is off-shutdown and sleep mode

2. Red indicator-output off

3. Reen indicator- output on

4. Charging-5V/600mA, available with C- TO-C cable

5.input Voltage: 12-24V(DC)

6.Operating temperature: -40-85

7.Linkage Method: 2.4G

8.Materials: Aluminum with refined power coating

9.Battery capacity: 3.7V/60mA

10. Charging port: 5V/1A Type-C, available with C-TO-C cable

PRODUCT DETAILS

Coding Method


1. Long press the on/off button for 5s until the green indicator flashes for three times, then press the on/off button once again;

2. When the green indicator is on, press any button on the switch panel to switch off the green indicator, coding match cuessfully;

3. When coding match cucceed, the indicator light will flash one time accordingly when press any button on the switch panel.

*If coding match do not cucceed, please cut off the power for 10s and try it again.


Warning:


1. Do not cover the switch panel with any metal products.

2. Do not disassemble the product without professional instructions.

3. The signal reciver should not be placed near metal parts of the vehicle. please ensure there is some distance between them.

4. Please keep this product away from the water.

5. Please operate this product under the available voltage.

6.Please operate this product under the available current draw.

7.Do not operate this products in the excessivaly humid environments as the humid air might be affected to the long distanced usage.

8 Please keep this product away from the high voltage and welding environments.

9. In environments with a high presence of 2.4G signals, individual operations may occasionally fail, if this occurs, please try pressing the button several times repeatedly. 10. The tested receiving distance of remote control is 50 meters under unscreened condition, the practical receiving distance might be decreased due to the actual environment condition.
